MINI SKID STEER LOADER

The Mini Skid Steer Loader is reliable, safe and to built to deliver maximum performance for Australia’s most demanding environments. Designed by Australians, for Australians, OzDiggers Mini Skid Steer Loaders are for those who like to get it done, and get it done right.

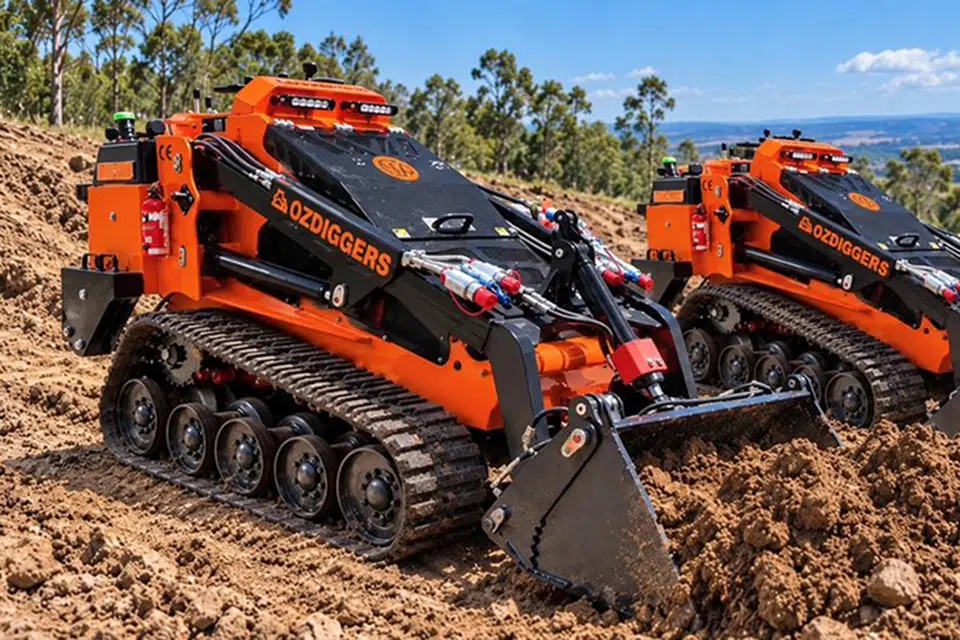

Available in tracked and wheel configurations with a powerful Perkins diesel engine or as a wheeled configuration, powered by a Briggs & Stratton Vanguard petrol engine.

SPECIFICATIONS

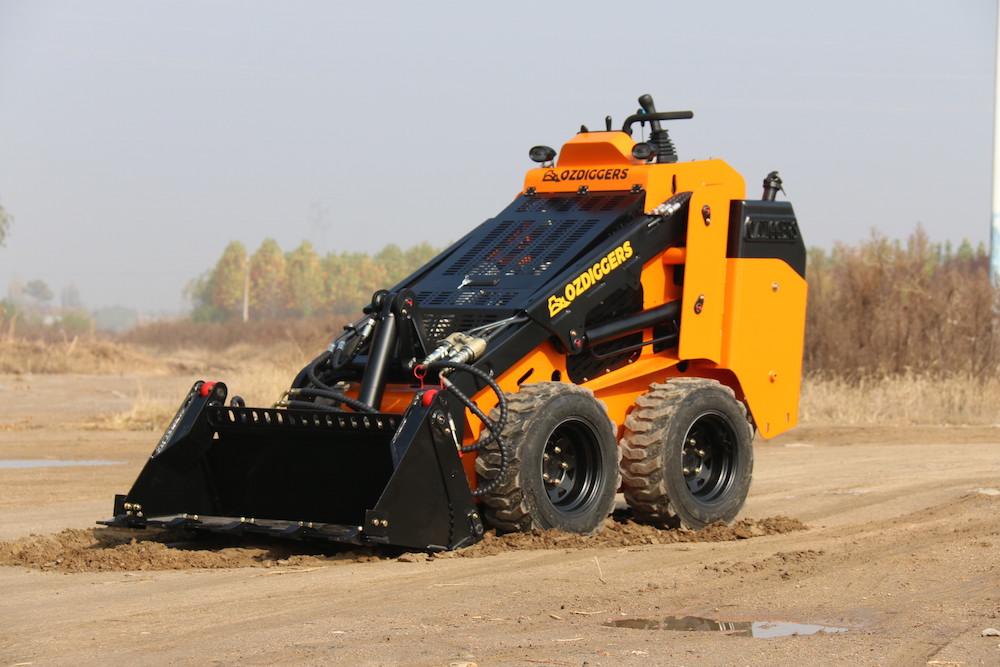

OD-123W - WHEELED PETROL MODEL ($23,000.00 GST inclusive )

Dimensions

Operating height: 2452mm
Height to bucket hinge pin: 1914mm
Height to top: 1370mm
Overall length with GP bucket: 2170mm
Overall length without bucket: 1740mm
Wheelbase: 657mm
Overall width: 1150mm
Mini ground clearance: 140mm
Angle of departure: 23°
Rated loading capacity: 400kgs
Kerb weight: 1200kgs

Power

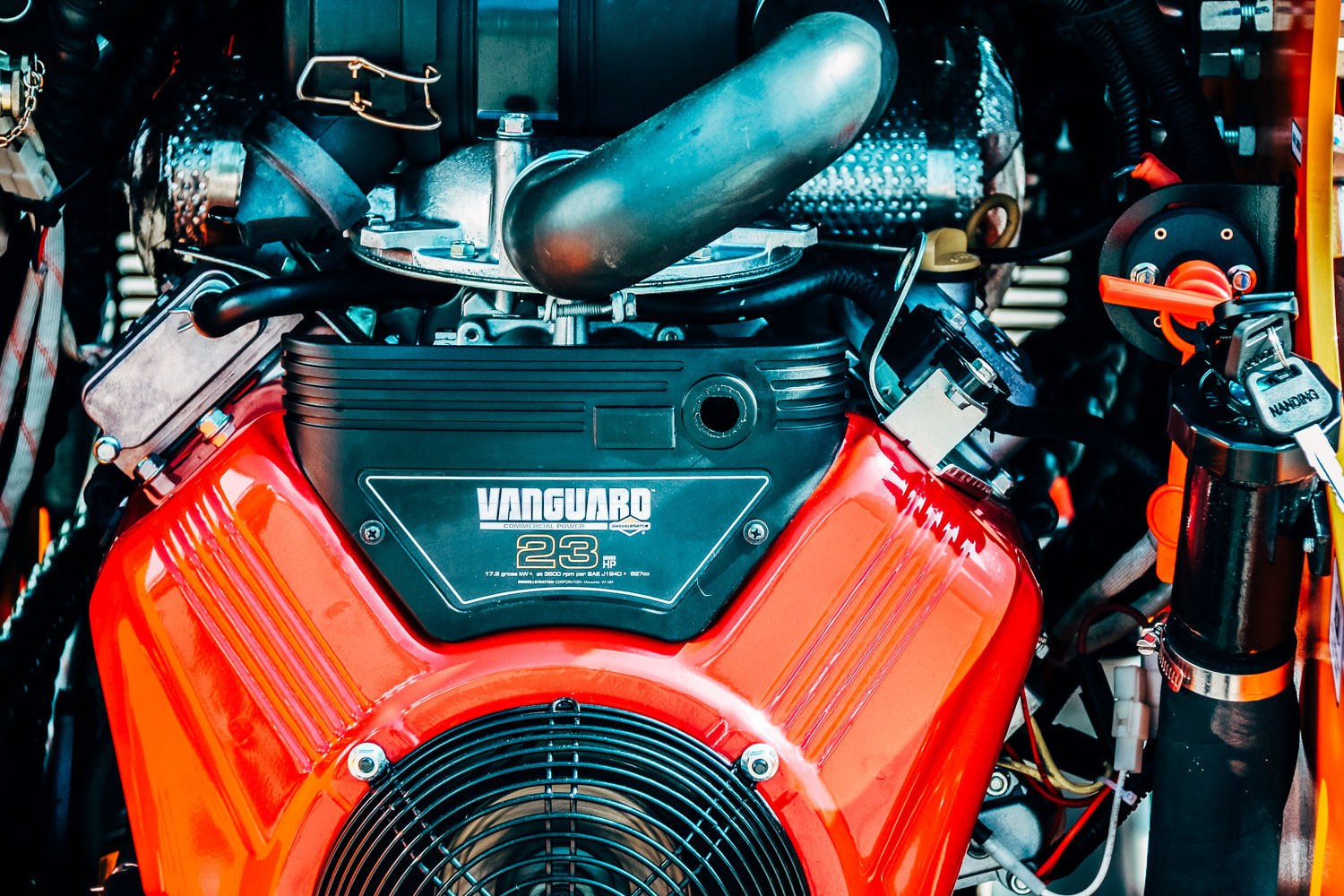

Engine maker: Briggs & Stratton Vanguard
Fuel type: Petrol
Rating power: 17.2kw
Number of cylinder: V-twin 2 Cylinder
Displacement: 627cc
Rated speed: 3600 rpm
Max. Drive Speed: 6km/h rpm
Max. Electrical Voltage: 12V
Max. Battery type: 45AH made by YUASA

Hydraulic System

Working system pressure: 180 bar
Working system Flow rate: 58 L/min

Turning Radius

Front without bucket: 801mm
Front turning radius:  1282mm
Rear turning radius:  1026mm

Misc

Tread width, centre-line - centre line: 960mm
Rollback of bucket on ground : 26°
Rollback of bucket at full height: 114°
Dumping height : 1515mm
Dumping reach: 545mm

OzDiggers Mini Skid Steer Loader

Fluid Capacities

Fuel tank capacity: 23 L
Engine oil: 1.5  L
Hydraulic reservoir capacity: 30 L

FEATURES

  • Compatible with OzDiggers Modular Attachment System
  • US Donaldson 3-stage air filter US PERMCO triple pump and WHITE motor, Italian HC control valve
  • Japan NSK bearing, 60H strong chains
  • Big aluminium radiator, LED lights
  • 400kg load capacity
  • Modular System - Compatible with OzDigger or third party attachments.
  • Designed by Australians for Australians

MODULAR ATTACHMENTS

ANGLE BLADE

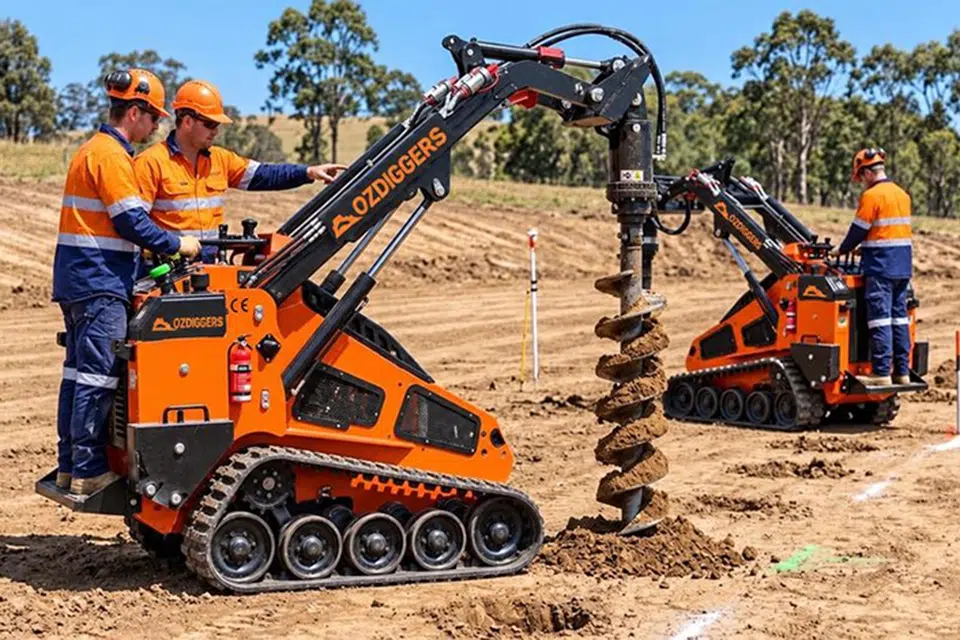

AUGER

BACKHOE

BREAKER

COLLECT SWEEPER

DIGGER

GRAPPLE

LAWN MOWER

LAWN RIPPER

LEVELLER BAR

MIXER

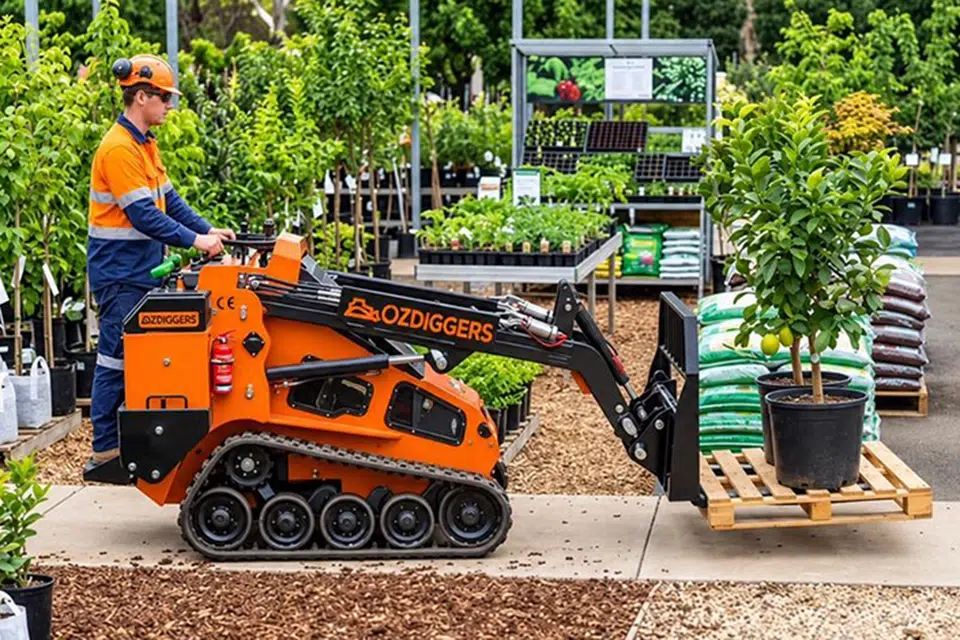

PALLET FORKS

RIPPER

ROCK BUCKET

SNOW BLOWER

SWEEPER

TRENCH FILLER

TRENCHER

ANGLE BLADE

AUGER

BACKHOE

BREAKER

COLLECT SWEEPER

DIGGER

GRAPPLE

LAWN MOWER

LAWN RIPPER

LEVELLER BAR

MIXER

PALLET FORKS

RIPPER

ROCK BUCKET

SNOW BLOWER

SWEEPER

TRENCH FILLER

TRENCHER
